Our Ulydor Anti-Vandal range is as modular as our standard range so you can design and build your own system to suit your requirements in exactly the same way.

Start with a UC0 AV, UC1 AV or UC2 AV Control Module and then add further Anti-Vandal modules as required.
Once you have chosen your modules, select the appropriate Surface or Flush mounting Anti-Vandal Box.

Power Supplies, Mag Locks, Exit Switches etc can all be found on our accessories page.

UC0 AV - ANTI-VANDAL CONTROL MODULE WITH NO BUTTONS

A Ulydor Control Module is required for every application.

  • Stainless Steel
  • Two wire analogue connection
  • Internal heating system*
  • Two relays for locking, lighting, cameras etc*
  • Easy to program via DTMF tones or programming leads using our free software**

* Requires a 12V Power Supply. click here to view our accessories page
** USB and Serial Programming Leads available separately - Click here to view our accessories page

Note: Because the UC0 AV has no buttons, it must be followed by either a C4 AV button module or 12 button keypad access/dialling module for calls to be placed.

Related Documents
Ulydor By Kalika - Operating Instructions

UC1 AV - ANTI-VANDAL CONTROL MODULE WITH ONE BUTTON

A Ulydor Control Module is required for every application.

  • Stainless Steel
  • Two wire analogue connection
  • Backlit inlay cards*
  • Internal heating system*
  • Two relays for locking, lighting, cameras etc*
  • Easy to program via DTMF tones or programming leads using our free software**

* Requires a 12V Power Supply. click here to view our accessories page
** USB and Serial Programming Leads available separately - Click here to view our accessories page

Related Documents
Ulydor By Kalika - Operating Instructions

UC2 AV - ANTI-VANDAL CONTROL MODULE WITH TWO BUTTONS

A Ulydor Control Module is required for every application.

  • Stainless Steel
  • Two wire analogue connection
  • Backlit inlay cards*
  • Internal heating system*
  • Two relays for locking, lighting, cameras etc*
  • Easy to program via DTMF tones or programming leads using our free software**

* Requires a 12V Power Supply. click here to view our accessories page
** USB and Serial Programming Leads available separately - Click here to view our accessories page

Related Documents
Ulydor By Kalika - Operating Instructions
C4 AV - ANTI-VANDAL 4 BUTTON PRIMARY EXTENSION MODULE

This module adds 4 buttons when used with a Control Module.
Button modules must be wired sequentially i.e. UC2 AV - C4 AV - M4 AV - C4 AV - M4 AV = 18 Buttons

Power for backlighting is provided by the ribbon data cable from the Control Module*

The C4 AV is differentiated from the M4 AV by a heavily populated green circuit board.
  • Stainless Steel
  • 4 Buttons
  • Ribbon data cable for connection to Control Module or other C4 Modules
  • Backlit inlay cards*
  • Supplied with Name Tags

*   Requires a 12V Power Supply to Control Module

click here to view our accessories page

Related Documents
Ulydor By Kalika - Operating Instructions
M4 AV - ANTI-VANDAL 4 BUTTON SLAVE EXTENSION MODULE

This module adds a further 4 buttons when used with a C4 Module.
Button modules must be wired sequentially i.e. UC2 AV - C4 AV - M4 AV - C4 AV - M4 AV = 18 Buttons

Power for backlighting is provided by two yellow wires hardwired to C4 AV  Module*
This unit is hardwired directly to a C4 AV Module

The M4 is differentiated from the C4 AV by a less populated brown circuit board.
  • Stainless Steel
  • 4 Buttons
  • Backlit inlay cards*
  • Supplied with Name Tags

*   Requires a 12V Power Supply hardwired from previous C4 Module

click here to view our accessories page

Related Documents
Ulydor By Kalika - Operating Instructions
UCK AV - ANTI-VANDAL 12 BUTTON ACCESS CONTROL MODULE

When used in conjunction with a Control Module the maximum configuration is 18 buttons (keypad being the last module to be used).
  • Stainless Steel
  • 12 Button Access Control Keypad
  • Green and Amber lit buttons for night use*
  • PIN code access plus Direct or Memory Dial modes
  • Option to control both relays on Control Module with separate PIN codes
  • Ribbon data cable for connection to Control Module or C4 AV Modules

*   Requires a 12V Power Supply from Control or C4 AV Module
click here to view our accessories page

Related Documents
Ulydor By Kalika - Operating Instructions


RFIDU-R AV - ANTI-VANDAL STANDALONE PROXIMITY DOOR ACCESS MODULE
  • Stainless Steel
  • Standalone
  • Integrated Relay
  • Up to 2000 keys
  • Requires a 12V Power Supply

Note: Requires RFIDU-K10 fobs (sold in packs of 10) for operation.
We would recommend at least 2 fobs are reserved for programming.

click here to view our accessories page

Related Documents
RFIDU-R - Standalone Installation Manual

Click to enlarge image

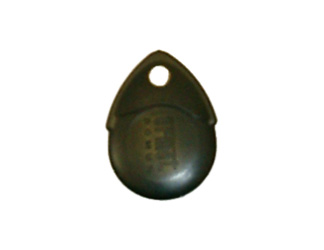

RFIDU-K10 - PROXIMITY KEY (Pack of 10)

The Key Fob is used with both the RFIDU-R and RFID-U-AV Standalone Proximity Access Modules
  • Up to 2000 key fobs can be used on one system
Related Documents
RFIDU-R - Standalone Installation Manual

BLK AV - ANTI-VANDAL BLANK MODULE

This module is ideal where a user wishes to expand by blanking off areas of the enclosure that are to be used at a later date.

  • Stainless Steel

NNM AV - ANTI-VANDAL NAME/NUMBER MODULE

  • Backlit*
  • Stainless Steel
  • Supplied with Name Plate

* Requires a 12V Power Supply from either a connected Control or C4 AV Module
click here to view our accessories page

IPC AV - ANTI-VANDAL IP COLOUR CAMERA MODULE

Allows the visitor at the door to be viewed on your PC screen, PDA or mobile phone.

The IP Camera is quick and straight-forward to install via your structured cable network by adopting the RJ45-RJ45 lead (red lead on the Rear View photograph) between camera and the wall socket. Program the camera via the web, logging its IP address and serial number. Once accepted, file the information under "favourites" on your web browser (or create a shortcut on your desktop). When receiving a call from the Ulydor (UCx) reception unit, simply go into "favourites" (or the shortcut) and by depressing the appropriate flag your computer screen will 'pop' displaying the image of the visitor and a conversation can take place.

  • Small compact size
  • Superior image quality
  • Built in Web Server
  • Three different resolutions
  • Up to 30 frames/second in all resolution modes
  • Supports up to 20 users simultaneously
