GSM-A - Analogues GSM Gateway - SIM card NOT provided

Offers a cordless GSM solution for areas impossible to cable.

  • Ideal for Ulydor installations where running cables is impossible, e.g. Gates, help points or sites situated away from a main building etc.
  • The Ulydor Control Module is hardwired to the GSM Gateway's analogue port and calls from Ulydor are then made over the GSM (mobile phone) network*

* Call charges may apply depending on the type of SIM card used and contract you have with your call provider.


Click to enlarge image

ES - Exit switch

Allows you to exit a building. If the exit door is well away from the Exit Switch a TRS (Timer relay switch) is required to be installed.


Click to enlarge image

ERBG-1 - Emergency release break glass

Allows emergency exit of the locked doors.


Click to enlarge image

ERBG-2 - Emergency release break glass (resettable)

Allows emergency exit of the locked doors. As ERBG-1 but with plastic resettable panel.

Click to enlarge image

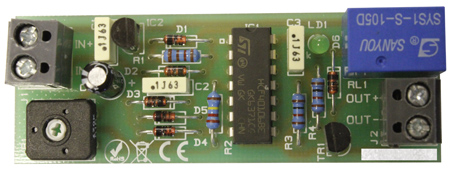

TRS - Timer relay switch

Allows a variable period of time from the moment the exit switch (ES) is depressed to exit the building.

Related Documents
Maglock Wiring Diagram

SS - Security screws

Security screws supplied with screw driver head.


Click to enlarge image

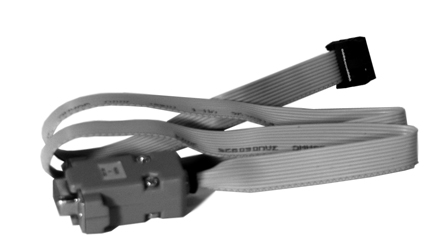

RS2 - RS232 - PC Programming lead

Enables Ulydor Standard and Anti-Vandal analogue modules to be programmed via Serial Cable on a PC using Nset Software.

Related Software
Nset Software

USB2PC - USB - PC Programming lead

Enables Ulydor Standard and Anti-Vandal analogue modules to be programmed via USB Cable on a PC using Nset Software.

Related Software
Nset Software
USB2PC - USB Programming strap driver for Windows 98, ME, W2000 & XP
USB2PC - USB Programming strap driver for Windows Vista & 7


Click to enlarge image

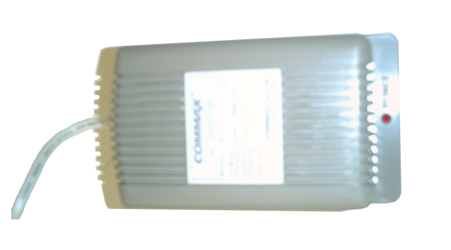

PSU/2 - Block transformer

12v @ 1 Amp

SHOULD NOT BE USED WITH MAGNETIC LOCKS


Click to enlarge image

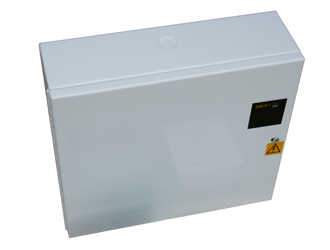

PSU/3 - Power supply - Battery backup enabled

For use with larger applications - e.g. using magnetic locks, etc.

In a metal cabinet style:

PSU/3-1 12volt @ 1 Amp
PSU/3-2 12volt @ 2 Amps
PSU/3-3 12volt @ 3 Amps

Battery bought separately - See PSU/3-B

  • Used when implementing mag locks, cameras, lighting, etc., where door security is paramount

  • Metal Housing

  • Cabinet Dim: 224 x 250 x 80 (mm) approx


Click to enlarge image

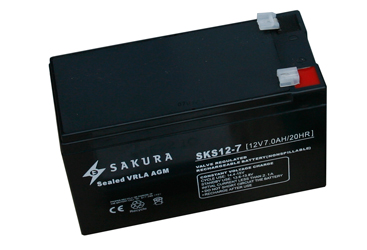

PSU/3-B - Battery for PSU/3 range

This battery can be used with any of the Ulydor range of PSU/3 power supplies.


Click to enlarge image

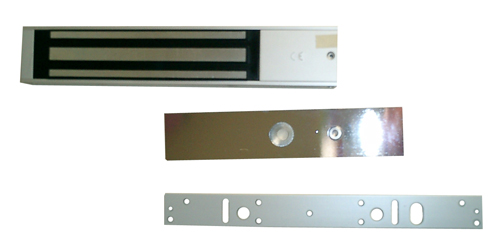

MM-1 - 300KG Magnetic door lock

  • Holding Force: 300Kg
  • Material: Aluminium
  • Voltage: 12/24 volt DC selectable
  • Operation Current Draw: 500mA-12VDC (250mA-24VDC)
  • Environmental: -20 to plus 50C
  • Dimension: 253mm x 46mm x 27mm
Related Documents
Maglock Wiring Diagram


Click to enlarge image

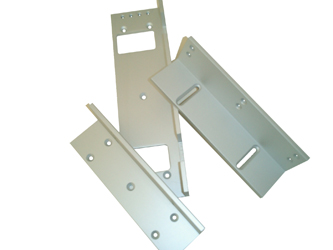

MM-1-B - 300KG Magnetic door lock Z&L Brackets

Brackets for MM-1 Magnetic door lock.

Related Documents
Maglock Wiring Diagram


Click to enlarge image

MM-2 - 500KG Magnetic door lock

  • Holding Force: 500Kg
  • Material: Aluminium
  • Voltage: 12/24 volt DC selectable
  • Operation Current Draw: 500mA-12VDC (250mA-24VDC)
  • Environmental: -20 to plus 50C
  • Dimension: 253mm x 46mm x 27mm
Related Documents
Maglock Wiring Diagram


Click to enlarge image

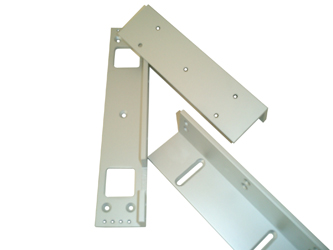

MM-2-B - 500KG Magnetic door lock Z&L Brackets

Brackets for MM-2 Magnetic door lock.

  • MM-2-B
Related Documents
Maglock Wiring Diagram



Click to enlarge image

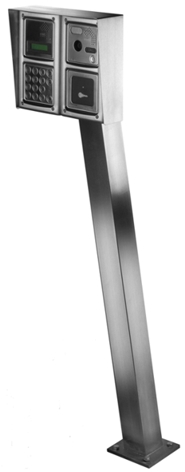

POST1 - Vehicle height post

These are rugged posts designed for the purpose.
Dimension: 80 x 80 x 1200 (mm)
(Root for Post supplied separately)

  • Made from stainless steel
  • Provided with Base Plate



Click to enlarge image

POST2 - Dual height vehicle post

These are rugged posts designed for the purpose.
Height: 2000 (mm)
(Root for Post supplied separately)

  • Made from stainless steel
  • Provided with Base Plate



Click to enlarge image

POST3 - Pedestrian height post

These are rugged posts designed for the purpose.
Height: 2000 (mm)
(Root for Post supplied separately)

Posts for specific applications can be supplied

  • Made from stainless steel
  • Provided with Base Plate



Click to enlarge image

POST4 - Pedestrian height post

These are rugged posts designed for the purpose.
Dimension: 80 x 80 x 1200 (mm)
(Root for Post supplied separately)

  • Made from stainless steel
  • Provided with Base Plate



Click to enlarge image

POST5 - Dual height post

These are rugged posts designed for the purpose.
Height: 1.6M & 1.2M
(Root for Post supplied separately)
  • Made from stainless steel
  • Provided with Base Plate



Click to enlarge image

POST-R - Root for posts

For use with all the Ulydor range of Posts
